Performance

Connector Construction, Performance & Protection

Outman Industries’ EMI/EMP connectors offer the versatility of standard connectors with EMI/EMP protection.
Housing the filter and/or MOV-Transient Protection assembly within the Mil-Spec connector eliminates costly external suppression assemblies.

Virtually all major MIL-Spec circular and rectangular connectors can be incorporated with filter devices:


MIL-DTL-38999
MIL-DTL-26482
MIL-DTL-83723
MIL-DTL-5015
MIL-DTL-27599
MIL-DTL-26500
MIL-DTL-24308 D-Sub
MIL-DTL-83513 Micro D
ARINC 404/600 Rack and Panel

MIL-DTL-83733 Rack and Panel

Materials & Finishes

​(1) Interfacial and Peripheral Seals
(2) Insulators
(3) Capacitors
(4) Shell
(5) Contacts



SHELL: Stainless Steel, Aluminum, or Composite (38999 III)


SHELL FINISH:

  • Electrolytic nickel (Stainless Steel)

  • Electroless nickel

  • Gold plate over nickel

  • Cadmium plate over nickel

  • Bright nickel

  • OD Cadmium plate, nickel base (500 hour salt spray test)

  • EN-PTFE (Nickel-PTFE) Outman Industries’ answer to EU RoHS/Cadmium Free Restrictions.

  • EN-PTFE has been proven to meet Potassium Formate and Potassium Acetate-Deicer fluid per RTCA DO160G, Sec 11 and  MIL-STD-810G, Method 504.

​​

CONTACT TERMINATIONS:

  • PCB termination (Pre-tinning is available)

  • Solder Cup wire termination (Fixed or Removable)

  • Solderless wire wrap

  • Weld Terminal

  • Solder eyelet

  • Right angle for D-Sub

​​

INSULATOR: High-temp plastic or epoxy.  Hermeticity of up to 4.6 x 10-3cc/sec prevents water from entering through the rear of the connector in high humidity environments or during testing.


CONTACT OPTIONS:

  • Coaxial, Twinax, and Triax contacts can be included in certain arrangements for signal or power circuits.

  • Filter contacts with different cut-off frequencies can be mixed within the same Planar

  • Ground, Feed-Thru, and filter contacts can be combined within the same connector.

  • Thermocouple contacts

  • MOV for EMP Transient Protection

Typical Electrical Performance

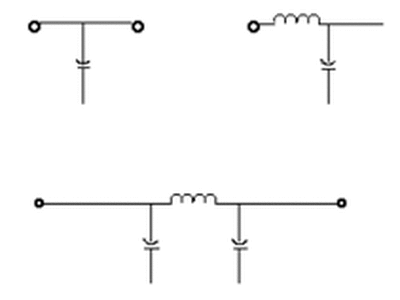

Filter Schematics



Benefits derived from the use of Outman Industries filter connectors include the fact that virtually any component with two leads can be installed in series with the load. The same is true of components installed in parallel with the load when utilizing SMT chips, tubular devices, and or planar capacitors (the physical size of the component(s)) being the significant limitation).

Low Pass Filters

Special Application
