SMA SERIES SPECIFICATIONS

MIL-PRF-39012 (INTERFACE DIMENSIONS PER MIL-STD-348)

​

MATERIALS:

Body parts: Stainless steel per ASTM-A-582, type 303.

Contacts: Beryllium copper per ASTM B196.condition HT

Insulators: Teflon TFE per ASTM-D-1710.

Gaskets: Silicone rubber per ZZ-R-765, class 2B, grade 65-75.

​

FINISH:

Center contacts: Gold plate per MIL-G-45204

All other parts finished to meet MIL-PRF-39012

corrosion requirements.

​

ELECTRICAL:

Insulation resistance:

Greater than 5000 megohms.

Dielectric withstanding voltage:

Per MIL-STD-202, method 301.

RF highpot voltage:

335-675 VAC @ 5-7 .5 MHz, dependent on cable type.

Contact resistance: 3 milliohms max.

RF leakage: -60 Db min, 2-3 GHz.

Insertion loss: .03 x √F(GHz) max test frequency 6 GHz.

VSWR (Straight cable plugs and jacks):

RG178: 1.20 + (.025xF[GHz]), DC-12.4 GHz.

RG316: 1.15 +(.020xF[GHz]), DC-12.4 GHz.

RG142: 1.15 +(.010x F[GHz]), DC-12.4 GHz.

RG402 (noncaptive contact): 1.05 + (.008xF[GHz]),DC-18 GHz.

RG402 (captive contact): 1.05 + (.001xF(GHz]), DC-18 GHz.

RG405 (captive contact): 1.07 + (.010xF[GHz]), DC-18 GHz.

RG405 (noncaptive contact): 1 07 + (.008xF[GHz]), DC-18 GHz.

VSWR SPECIFICATIONS ARE NOT APPLICABLE TO

NON-CABLED CONNECTORS.

Impedance: 50 ohms.

Frequency range: DC to 8, 12.4 or 18 GHz, dependent on cable

type and configuration.

​

MECHANICAL:

Engage/disengage force: 2 pounds max.

Mating characteristics: Dimensions per above.

For female contacts (after 5 insertions of

.0375 dia pin, .040 min depth):

Insertion force with .037 min dia pin, 2 pounds max.

Withdrawal force for .0355 max dia pin, 1 ounce min.

Contact retention (captive contact connectors):

6 pounds min axial force.

Durability: 500 mating cycles.

​

ENVIRONMENTAL:

(per MIL-STD-202)

Vibration: Method 204, test condition D.

Mechanical shock: Method 213, condition I.

Thermal shock: Method 107, condition B.

Corrosion: Method 101, condition B, 5% salt solution.

Moisture resistance: Method 106.

Corona level: Corona free @ 70,000 feet.

voltage dependent on cable size.

Temperature rating: -65°C to + 165°C.

SMA Series: Straight Panel Jack Receptacle

1408-0116-000 sma straight panel jack re

  • Solder pot contact

  • 2 hole flange

  • Captive contact

1408-0116-000 sma straight panel jack re
1408-0116-000 sma straight panel jack re

1408-0116-000 (Passivated)

1408-9116-000 sma straight panel jack re
1408-9116-000 sma straight panel jack re

1408-9116-000 (Gold plated)

1404-0116-000 sma straight panel jack re

  • Solder pot contact

  • 4 hole 1/2" square flange

  • Captive contact

1404-0116-000 sma straight panel jack re
1404-0116-000 sma straight panel jack re

1404-0116-000 (Passivated)

1404-9116-000 sma straight panel jack re
1404-9116-000 sma straight panel jack re

1404-9116-000 (Gold plated)

1008-9116-000 sma straight panel jack re

  • Extended contact & insulator

  • 2 hole flange

  • Captive or non-captive contact

1008-0116-000 sma straight panel jack re
1008-9116-000 sma straight panel jack re

Captive Contact:               1008-0116-000 (Passivated)

​

Non-Captive Contact:      1008-0016-000 (Passivated)

1008-9116-000 (Gold plated)

​

1008-9016-000 (Gold plated)

1004-9116-000 sma straight panel jack re

  • Extended contact & insulator

  • 4 hole 1/2" square flange

  • Captive or non-captive contact

1004-0116-000 sma straight panel jack re
1004-9116-000 sma straight panel jack re

Captive Contact:               1004-0116-000 (Passivated)

​

Non-Captive Contact:      1004-0016-000 (Passivated)

1004-9116-000 (Gold plated)

​

1004-9016-000 (Gold plated)

1108-9116-000 sma straight panel jack re

  • Tab contact

  • 2 hole flange

  • Captive or non-captive contact

1108-0116-000 sma straight panel jack re
1108 silver.jpg
1108-9116-000 sma straight panel jack re
1108 gold.jpg

Captive Contact:               1108-0116-000 (Passivated)

​

Non-Captive Contact:      1108-0016-000 (Passivated)

1108-9116-000 (Gold plated)

​

1108-9016-000 (Gold plated)

1104-9116-000 sma straight panel jack re

  • Tab Contact

  • 4 hole ½” square flange

  • Captive or non-captive contact

1104-0116-000 sma straight panel jack re
1104-0116-000 sma straight panel jack re
1104-9116-000 sma straight panel jack re
1104-9116-000 sma straight panel jack re

Captive Contact:               1104-0116-000 (Passivated)

​

Non-Captive Contact:      1104-0016-000 (Passivated)

         1104-9116-000 (Gold plated)

​

         1104-9016-000 (Gold plated)

1208 diagram.jpg

  • Slotted contact

  • 2 hole flange

  • Captive or non-captive contact

1208-0116-000 sma straight panel jack re
1108 silver.jpg
1208-9116-000 sma straight panel jack re
1108 gold.jpg

Captive Contact:          DIM.“A”

                                        .012          1208-0116-012 (Passivated)                     1208-9116-012 (Gold plated)



                                        .018          1208-0116-018 (Passivated)                     1208-9116-018 (Gold plated)



                                        .025          1208-0116-025 (Passivated)                     1208-9116-025 (Gold plated)

​

Non-Captive Contact: DIM.“A”

                                        .012          1208-0016-012 (Passivated)                     1208-9016-012 (Gold plated)

​

                                        .018          1208-0016-018 (Passivated)                     1208-9016-018 (Gold plated)

​

                                        .025          1208-0016-025 (Passivated)                     1208-9016-025 (Gold plated)

1204-0116-000 sma straight panel jack re

  • Slotted contact

  • 4 hole 1/2" square flange

  • Captive or non-captive contact

1204 silver.jpg
1104-0116-000 sma straight panel jack re
1204 gold.jpg
1104-9116-000 sma straight panel jack re

Captive Contact:          DIM.“A”

                                        .012          1204-0116-012 (Passivated)                                   1204-9116-012 (Gold plated)



                                        .018          1204-0116-018 (Passivated)                                   1204-9116-018 (Gold plated)



                                        .025          1204-0116-025 (Passivated)                                   1204-9116-025 (Gold plated)

Non-Captive Contact: DIM.“A”

                                        .012          1204-0016-012 (Passivated)                                   1204-9016-012 (Gold plated)

​

                                        .018          1204-0016-018 (Passivated)                                   1204-9016-018 (Gold plated)

​

                                        .025          1204-0016-025 (Passivated)                                   1204-9016-025 (Gold plated)

SMA Series: Flexible Cable Connectors

Standard Versions

Standard Version

Part Number: 1501-9102-0XX


SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Gold Plated Finish

Standard Version

​Part Number: 1501-6102-0XX


SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Passivated Stainless Steel Finish

Standard Version

Part Number: 1501-7102-0XX


SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Olive Drab Finish

Waterproof Versions

All waterproof versions are proven reliably sealed to a depth of 6 meters in water in an unmated condition.

Waterproof Version

​​Part Number: 1501-9112-0XX


Waterproof SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Gold Plated Finish

Waterproof Version

​​Part Number: 1501-6112-0XX


Waterproof SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Passivated Stainless Steel Finish

Waterproof Version

Part Number: 1501-7112-0XX


​Waterproof SMA Rear Bulkhead Mount Coaxial Cable Jack
​Crimp Termination
Olive Drab Finish

SMA Series: Semi-Rigid Straight Cable Jacks

direct solder attachment.jpg

  • Direct Solder Attachment

  • Contact & Insulator

  • Non-Captive Contact

1402-9086-086 (Gold plated).jpg
1402-8086-086 (Nickel Plated).jpg

  1402-9086-086 (Gold plated)                 1402-8086-086 (Nickel plated)

.144 .180.jpg
1402-9086-141 (Gold Plated).jpg
1402-8086-141 (Nickel Plated).jpg

​

1402-9086-141 (Gold plated)                       1402-8086-141 (Nickel plated)

.086 .120 Captive Contact.jpg

  • Direct Solder Attachment

  • One Step Assembly

  • Captive Contact

1402-9186-086 (Gold Plated).jpg
1402-8186-086 (Nickel Plated).jpg

      1402-9186-086 (Gold plated)                    1402-8186-086 (Nickel plated)

.144 .180 2.jpg
1402-9186-141 (Gold Plated).jpg
1402-8186-141 (Nickel Plated).jpg

  1402-9186-141 (Gold plated)                 1402-8186-141 (Nickel plated)

solder clamp.jpg

  • Solder/Clamp Attachment

  • Field Replaceable Body

  • Captive Contact


Ø .086 Semi-Rigid:      1502-0196-086 (Passivated)         1502-9196-086 (Gold plated)       1502-8196-086 (Nickel plated)

​

Ø .141 Semi-Rigid:      1502-0196-141 (Passivated)         1502-9196-141 (Gold plated)       1502-8196-141 (Nickel plated)

SMA Series: Semi-Rigid Straight Cable Plugs

  • Direct Solder Attachment

  • Contact & Insulator

  • Non-Captive Contact

plug .089 .120.jpg

​

      1401-0086-086 (Passivated)              1401-9086-086 (Gold plated)        1401-8086-086 (Nickel plated)

.144 .180 3.jpg

     1401-0086-141 (Passivated)              1401-9086-141 (Gold plated)       1401-8086-141 (Nickel plated)

.089 .120.jpg

  • Direct Solder Attachment

  • One Step Assembly

  • Captive Contact


         1401-0186-086 (Passivated)      1401-9186-086 (Gold plated)        1401-8186-086 (Nickel plated)

.144 .180 4.jpg

1401-0186-141 (Passivated)         1401-9186-141 (Gold plated)        1401-8186-141 (Nickel plated)

.33 .77.jpg

  • Solder/Clamp Attachment

  • Field Replaceable Body

  • Captive Contact


Ø .086 Semi-Rigid:      1501-0196-086 (Passivated)         1501-9196-086 (Gold plated)       1501-8196-086 (Nickel plated)

​

Ø .141 Semi-Rigid:      1501-0196-141 (Passivated)         1501-9196-141 (Gold plated)       1501-8196-141 (Nickel plated)

SMA Series: Straight Flexible Cable Plugs

1001-0026-xxx flex sma str plugDWG.jpg

  • Crimp Attachment

  • Solder on Contact

  • Non-Captive Contact

1001-9026-xxx flex sma str plug noncapti
1001-0026-xxx flex sma str plug noncapti

      1001-9026-XXX (Gold plated)                                 1001-0026-XXX (Passivated)

1101-0026-xxx flex sma str plug dwg.jpg

  • Crimp Attachment

  • Field Replaceable Body

  • Solder on Contact

  • Captive Contact

1101-9026-xxx flex sma str plug captive.
1101-0026-xxx flex sma str plug captive.

      1101-9126-XXX (Gold plated)                                 1101-0126-XXX (Passivated)

1201-XXX SMAP DWG.jpg

  • Solder/Clamp Attachment

  • Field Replaceable Body

  • Captive Contact

1201-0156-XXX SMAP PASS.jpg
1201-9156-XXX SMAP GOLD.jpg
1201-8156-XXX SMAP NICK.jpg

      1201-0156-XXX (Passivated)            1201-9156-XXX (Gold plated)            1201-8156-XXX (Nickel plated)

1202 actual drawing.jpg

  • Solder/Clamp Attachment

  • Field Replaceable Body

  • Captive Contact

1202-0156-XXX SMAJ PASS.jpg
1202-9156-XXX SMAJ GOLD.jpg
1202-8156-XXX SMAJ NICK.jpg

      1202-0156-XXX (Passivated)              1202-9156-XXX (Gold plated)            1202-8156-XXX (Nickel plated)

SMA ADAPTOR SERIES SPECIFICATIONS

MIL-PRF-39012 (INTERFACE DIMENSIONS PER MIL-STD-348)

MATERIALS:

Body parts: Stainless steel per ASTM-A-582, type 303.

Contacts: Beryllium copper per ASTM B196.condition HT

Insulators: Teflon TFE per ASTM-D-1710.

Gaskets: Silicone rubber per ZZ-R-765, class 2B, grade 65-75.

​

FINISH:

Center contacts: Gold plate per MIL-G-45204

All other parts finished to meet MIL-PRF-39012

corrosion requirements.

​

ELECTRICAL:

Insulation resistance:

Greater than 5000 megohms.

Dielectric withstanding voltage:

Per MIL-STD-202, method 301.

RF highpot voltage:

335-675 VAC @ 6 MHz

Contact resistance: 3 milliohms max.

RF leakage: -60 Db min, 2-3 GHz.

Insertion loss: .03 x √F(GHz) max test frequency 6 GHz.

VSWR (Straight adaptors):

1.20 + (.025 x F[GHz]), DC-18 GHz.

Impedance: 50 ohms.

Frequency range: DC to 18 GHz

​

MECHANICAL:

Engage/disengage force: 2 pounds max.

Mating characteristics: Dimensions per above.

For female contacts (after 5 insertions of

.0375 dia pin, .040 min depth):

Insertion force with .037 min dia pin, 2 pounds max.

Withdrawal force for .0355 max dia pin, 1 ounce min.

Contact retention (captive contact connectors):

6 pounds min axial force.

Durability: 500 mating cycles.

ENVIRONMENTAL: (per MIL-STD-202)

Vibration: Method 204, test condition D.

Mechanical shock: Method 213, condition I.

Thermal shock: Method 107, condition B.

Corrosion: Method 101, condition B, 5% salt solution.

Moisture resistance: Method 106.

Corona level: Corona free @ 70,000 feet.

Temperature rating: -65°C to + 165°C.

SMA Series: Same Series Adaptors

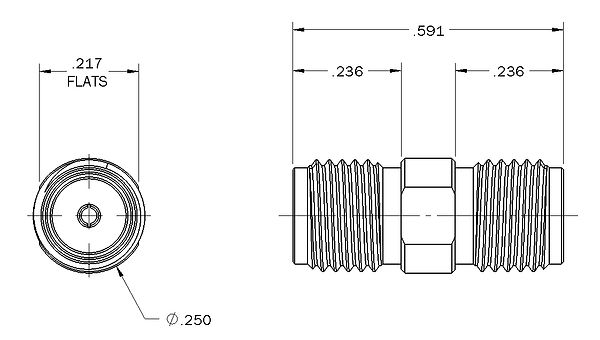

  • Jack to Jack

  • Connects two plugs

  • Captive Contact


                                           4917-0116-000 (Passivated)                               4917-9116-000 (Gold plated)

4909-0116-000 sma jack to sma panel jack

  • Jack to Panel Jack

  • Connects two plugs
    between a panel

  • Captive Contact

4909-0116-000 sma jack to sma panel jack
4909-9116-000 sma jack to sma panel jack

4909-0116-000 (Passivated)                                4909-9116-000 (Gold plated)


  • Plug to Jack

  • Connects two plugs

  • Captive Contact


​

  4916-0116-000 (Passivated)                              4916-9116-000 (Gold plated)

bottom of page
